Präzisions-Leistungsverstärker A1230-02

4-Quadranten Spannungsverstärker

DC - 7 MHz, 450 V/µs, (2x) 75 V, (2x) 5 A

A1230-02#

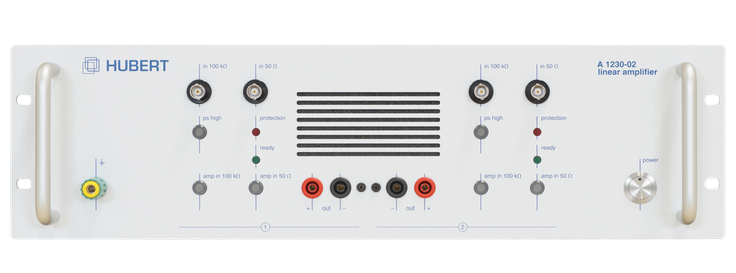

The A1230-02 is an extremely fast and broadband precision power amplifier with two dedicated channels

It is ideally suited for applications that require quickly changeable signals at optional resistive and complex loads. The A1230-01 is equipped with two added inputs with 50 Ω and 100 kΩ input resistance, respectively; the 50 Ω input makes it the ideal downstream equipment for conventional function generators.

The integrated second channel can be used to either double the current or double the voltage for your application.

Performance#

Output voltage: ± 150 Vpeak (2-ch mode)
Output current: ± 20 Apeak (2-Ch-Mode)
Power bandwidth: DC - 1 MHz
Frequency range: DC - 7 MHz (small signal -3 dB)
Slew rate: 450 V/μs
Voltage gain: 20 ± 1 % (± 100 ppm /°C) Input 50 Ohm 10 ± 1 % (± 100 ppm /°C) Input 100 kOhm
Offset ± 2 mV typ.(± 0.1 mV /°C)

Features#

2 channels
Broadband laboratory amplifier for resistive and complex loads
Ideally suited as an “afterburner” for function generators

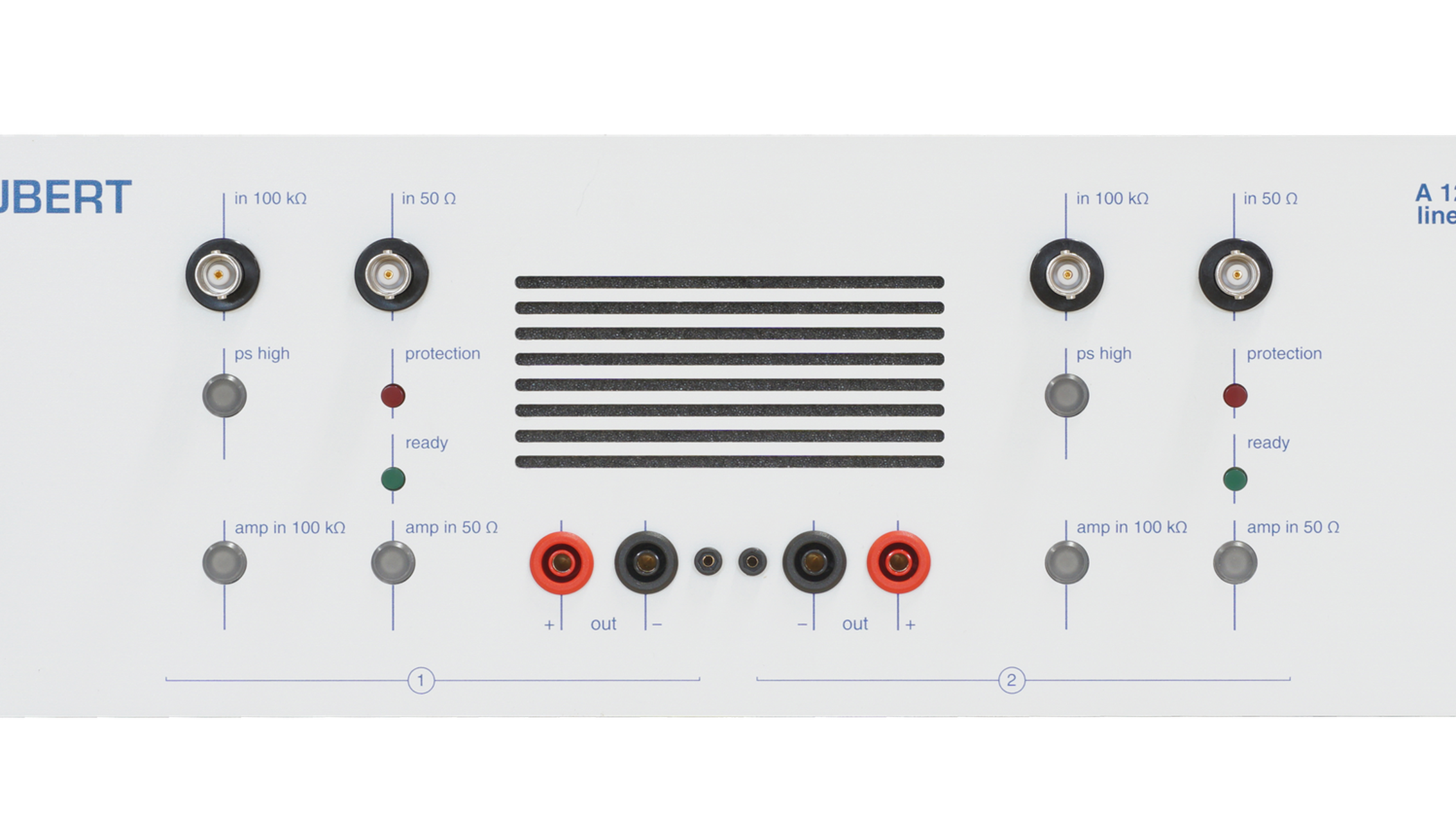

Two addable inputs with 50 Ω and 100 kΩ input resistance
Switchable slew rate limiter

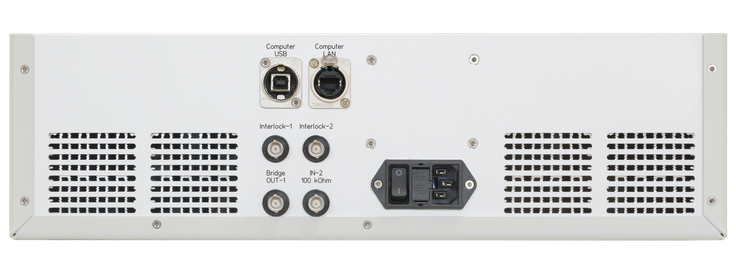

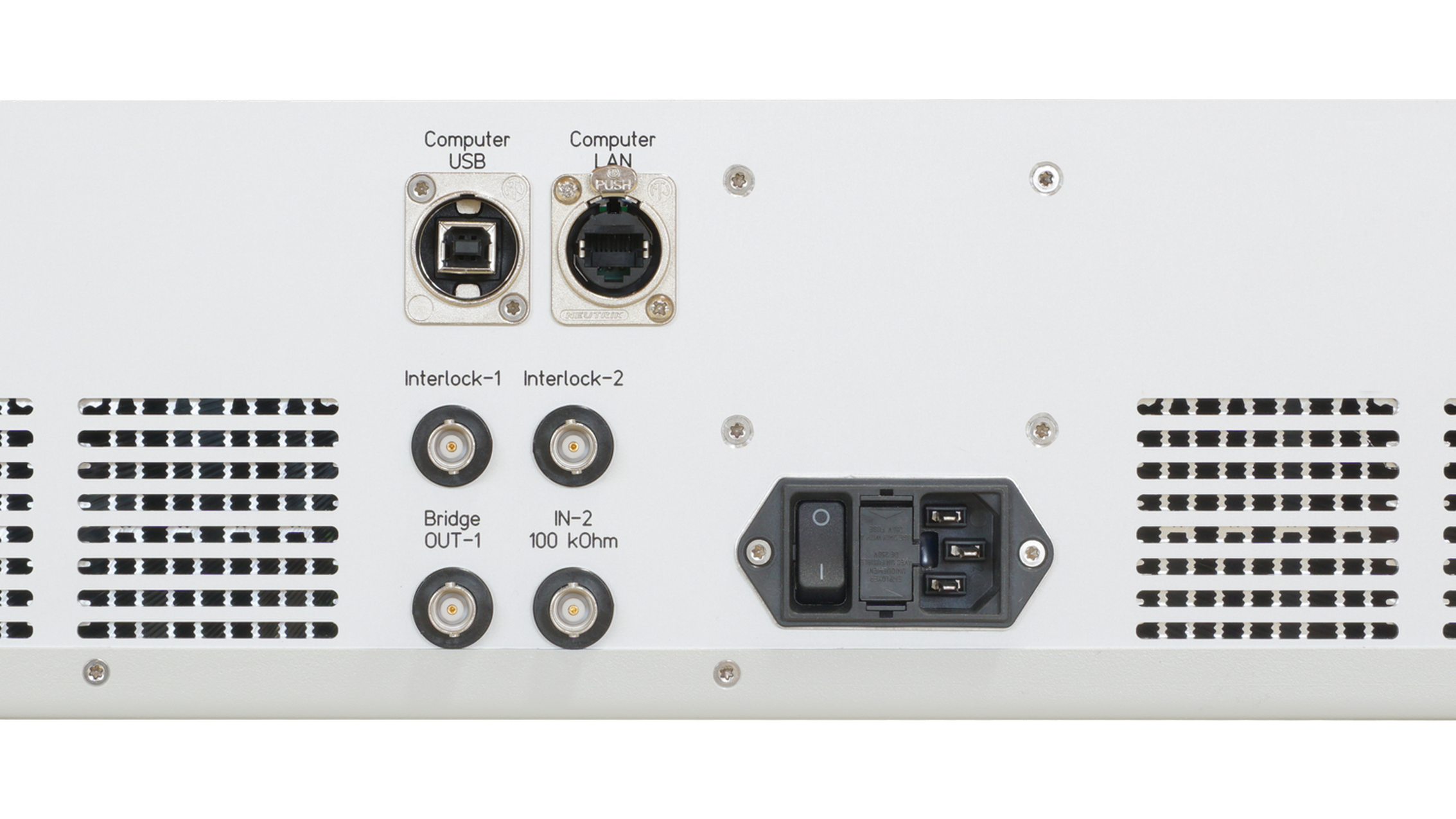

Preamplifier output (bridge out) enables simple construction of bridge circuits Completely remote controllable via USB port
2 supply voltages
