CMD-100
Current Measurement Device
CMD-100#
The CMD-100 is a Current Measurement Device. Current measurement is carried out with a high precision DC current transducer that measures currents of up to 150 A and continuously measures 100 A currents. The current is thus measured galvanically isolated. The gain of the current monitor can be set using a switch. Two settings can be selected: 1 V corresponds to 10 A or 1 V corresponds to 1 A.
In addition to measuring the current, the CMD-100 can also measure the output voltage. The voltage is measured differential. Since the measuring points are relocated, the voltage can be measured at any point.
The measured variables of current and voltage are output via BNC connections.
Performance#
- Maximum continuous current: ± 100 Apeak
- Maximum voltage: ± 100 Vpeak
- Amplitude accuracy: ± 1 %
- Current monitor: 1 V / 10 A (1 V / 1 A)
- Voltage monitor: 1 V / 10 V
Features#
- Galvanically isolated current measurement
- Switchable resolution of current measurement (1V = 10A / 1V = 1A)
- Differential voltage measurement
- Two BNC monitor outputs for current and voltage
- No additional power supply unit required
Applications#
- Precise current measurement
- Power measurement and power analysis

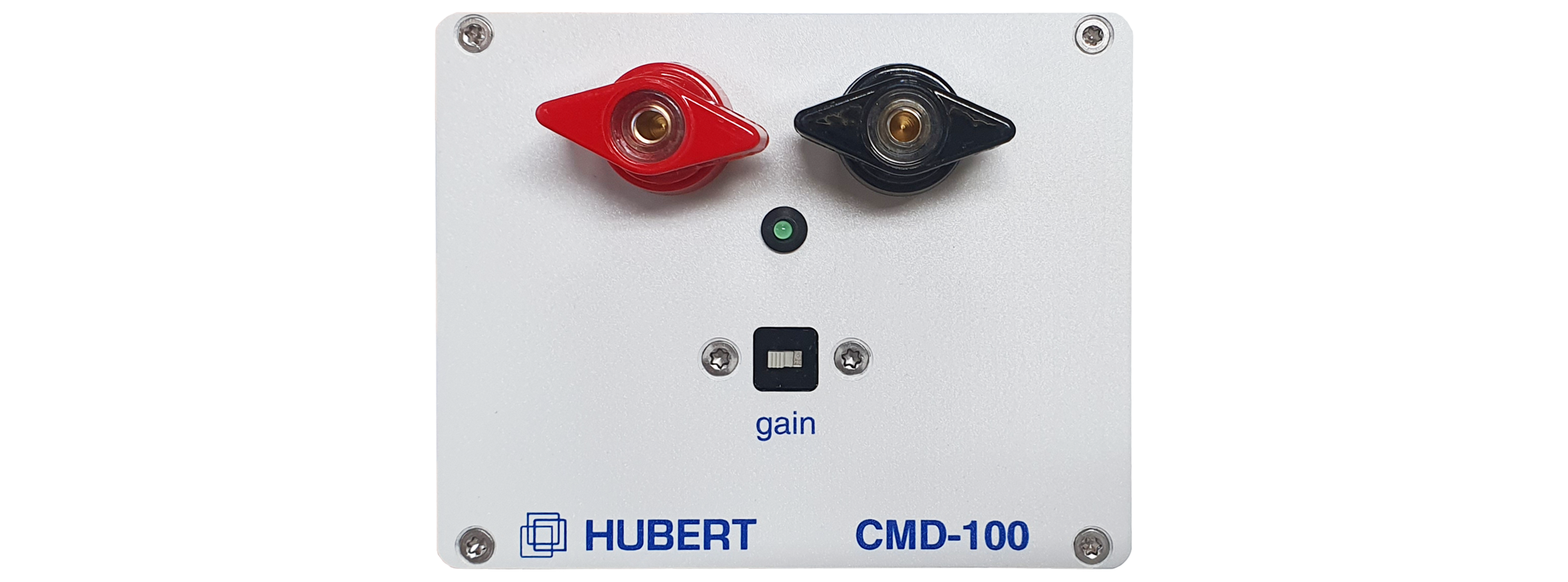

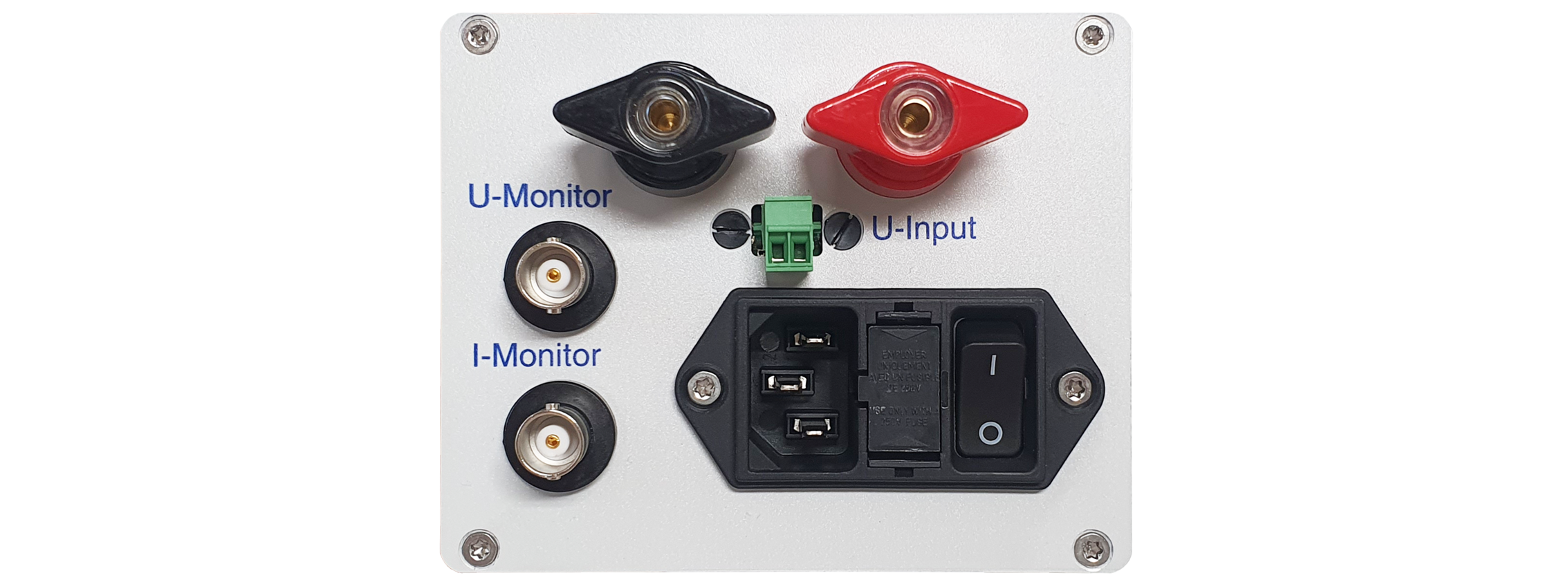

Product Images#
Enlarge the view to see details.
