High-frequency Power Amplifier A1020-25-250
100 kHz - 250 MHz | 25 W
RF Amp 50 Ohm
Monitor Output
Interlock
A1020-25-250#
Universally applicable RF amplifier with 50 Ω input & output
The RF broadband power amplifiers of the A1020 family are robust Class A/AB amplifiers for EMC testing and general laboratory applications. Stability under all load conditions encountered in practice, a wide frequency range, low distortion and a fair purchase price characterize these amplifiers.
Performance#
- Frequency range: 100 kHz - 250 MHz
- Output power Nominal / Linear @ 1 dB compression: 25 W / 20 W
- Gain: 46 dB nominal
- Linearity: ± 1.5 dB maximum
- Input power for nominal output power: 1 mW / 0 dBm
- Input / output impedance: 50 Ohm
- Distortion: < -20 dBc at 20 W
Features#
- Universally applicable HF amplifier with 50 Ω input/output
- Ultra broadband frequency response over several decades
- High linearity enables good signal fidelity with all modulation types
- Low distortion for clean test signals
- High gain stability over temperature
- Optimised cooling concept enables the lowest possible noise generation with low weight
- Highly efficient power supply with a power factor close to 1 and universal wide range input
- Monitor output parallel to the amplifier output for monitoring the test signal
- Interlock connection for safe test setups
Applications#
- General applications in research, development and testing
- EMC testing (e.g. with CDNs, coupling clamps, antennas)
- Radio technology
- Material testing
- Medical technology
- Component testing
- Laser technology
- Plasma technology

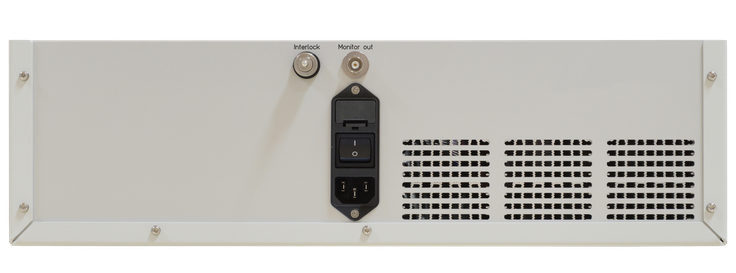

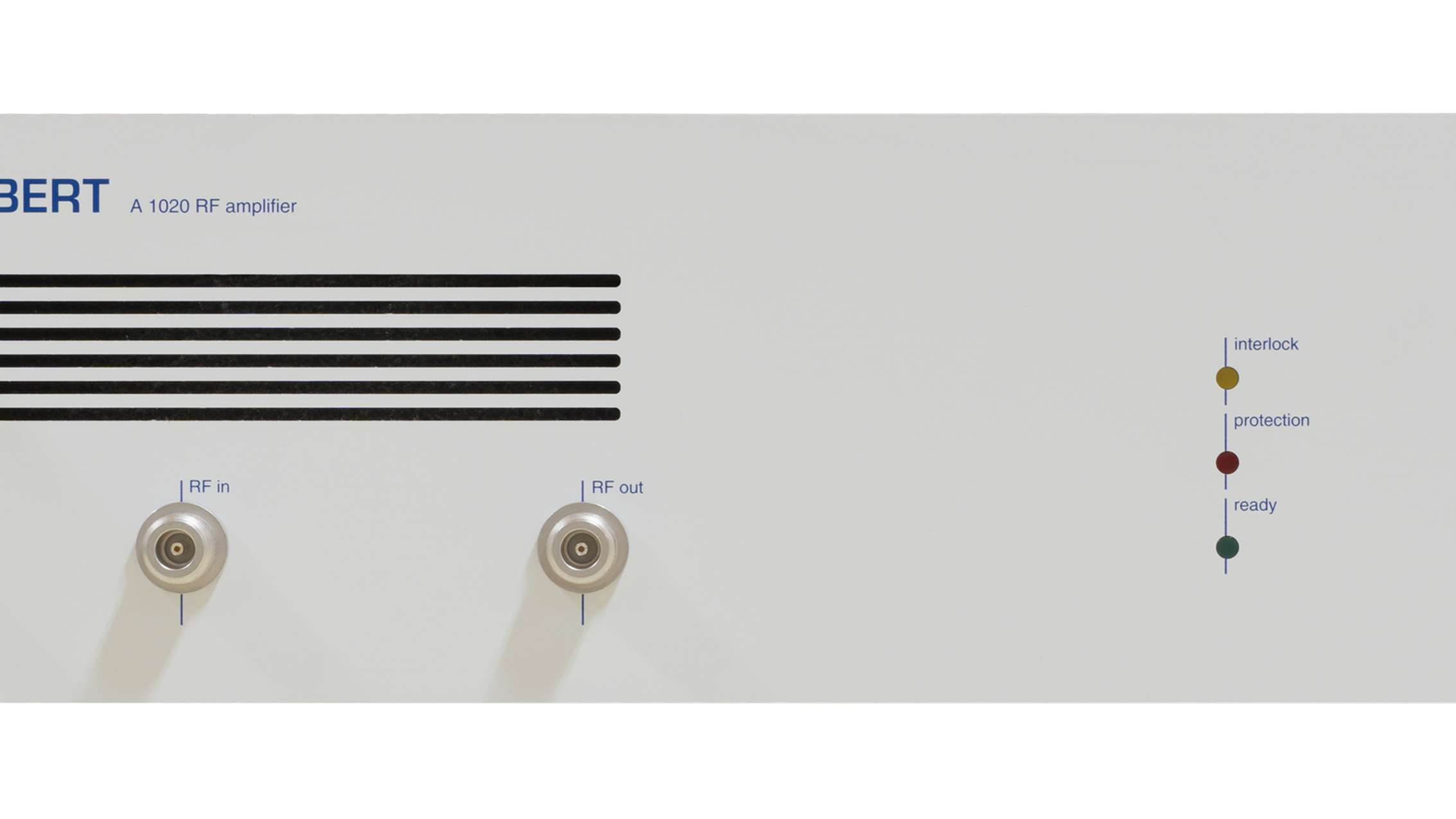

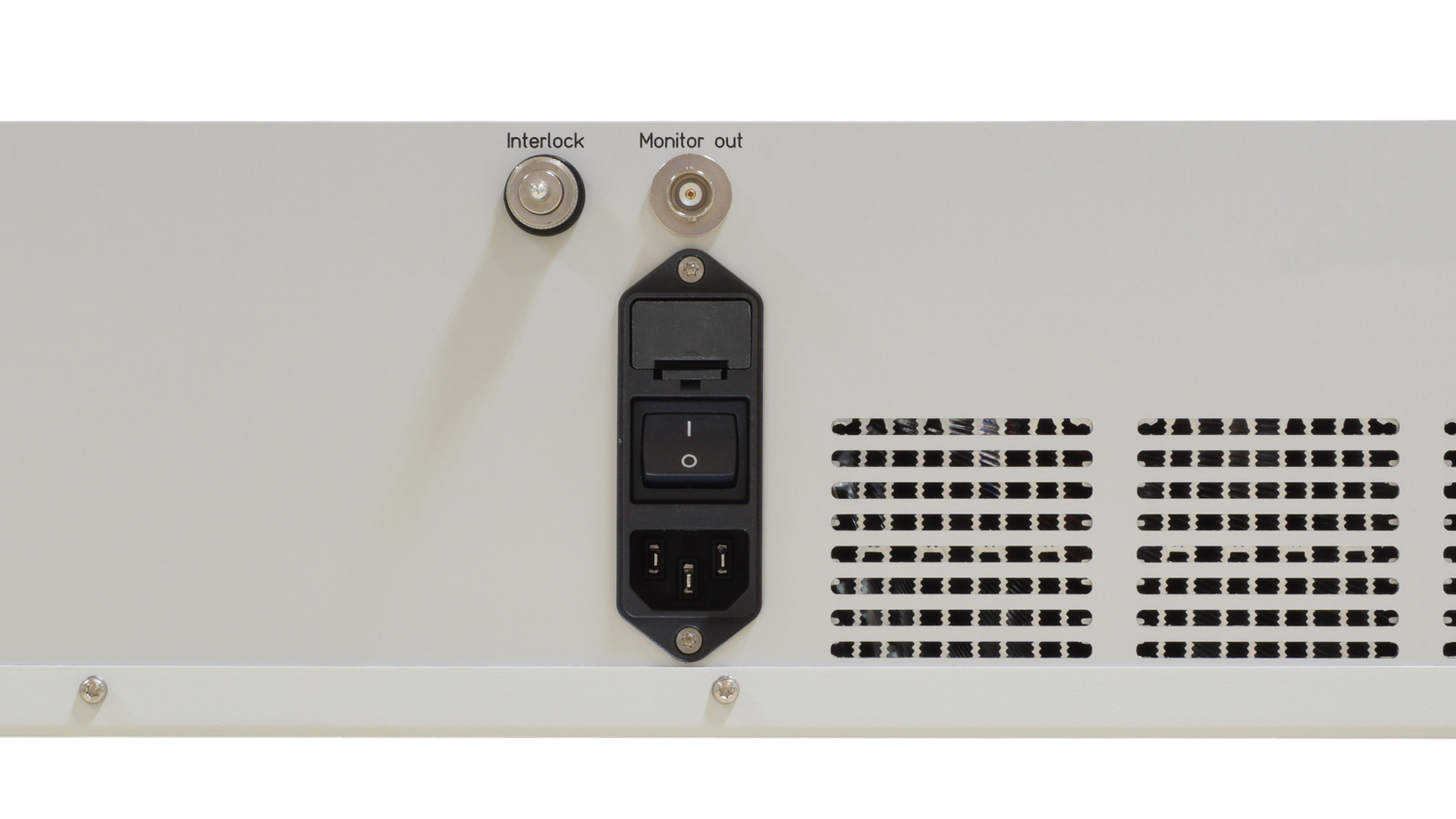

Product Images#
