Precision Power Amplifier A1230-01
4-Quadrant Voltage and Current Amplifier
DC - 7 MHz, 450 V/µs, 75 V, 5 A
4-Quadrant Amplifier
Operating Software
USB
LAN
Interlock
Switchable Slew Rate Limiter
A1230-01#
The A1230-01 is an extremely fast and broadband precision power amplifier.
It is ideally suited for applications that require quickly changeable signals at optional resistive and complex loads. The A1230-01 is equipped with two added inputs with 50 Ω and 100 kΩ input resistance, respectively; the 50 Ω input makes it the ideal downstream equipment for conventional function generators.
Performance#
- Output voltage: ± 75 Vpeak
- Output current: ± 5 Apeak
- Power bandwidth: DC - 1 MHz
- Frequency range: DC - 7 MHz (small signal -3 dB)
- Slew rate: 450 V/μs
- Voltage gain: 20 ± 1 % (± 100 ppm /°C) Input 50 Ohm 10 ± 1 % (± 100 ppm /°C) Input 100 kOhm
- Offset ± 2 mV typ.(± 0.1 mV /°C)
Features#
- Broadband laboratory amplifier for resistive and complex loads
- Ideally suited as an “afterburner” for function generators
- Two addable inputs with 50 Ω and 100 kΩ input resistance
- Preamplifier output (bridge out) enables simple construction of bridge circuits Completely remote controllable via USB port
- 2 supply voltages
Applications#
- General lab applications for research, development and testing
- EMC testing
- Material testing
- MRI
- Component tests
- Plunger coil drives
- Piezo actuation
- Generation of magnetic fields (e.g. with Helmholtz coils)
- Medical engineering
- Laser technology
- Plasma technology

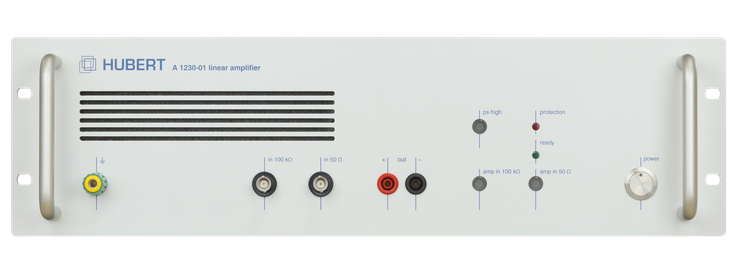

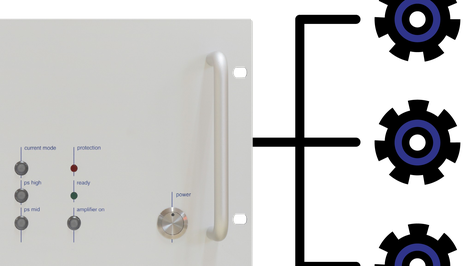

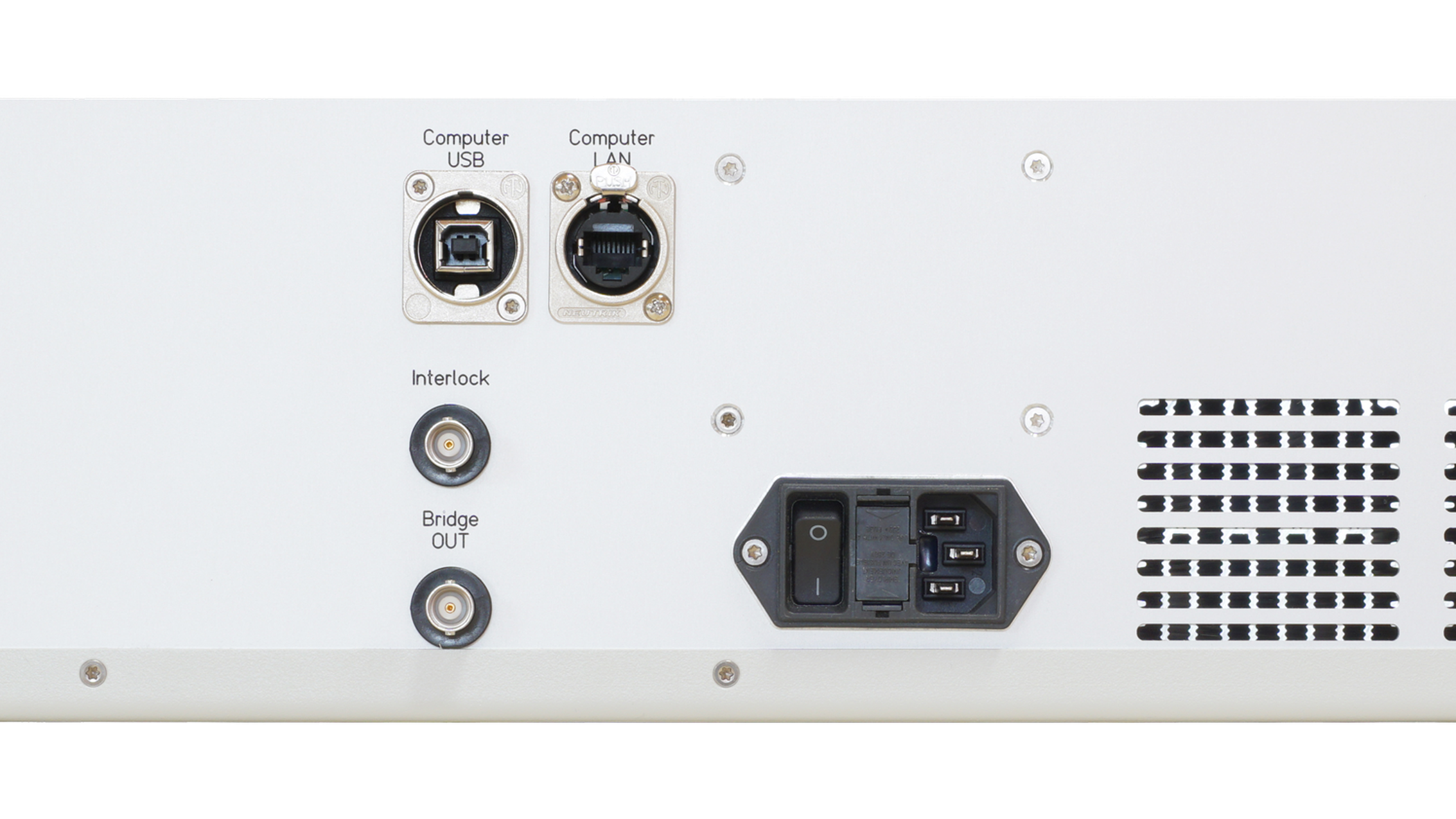

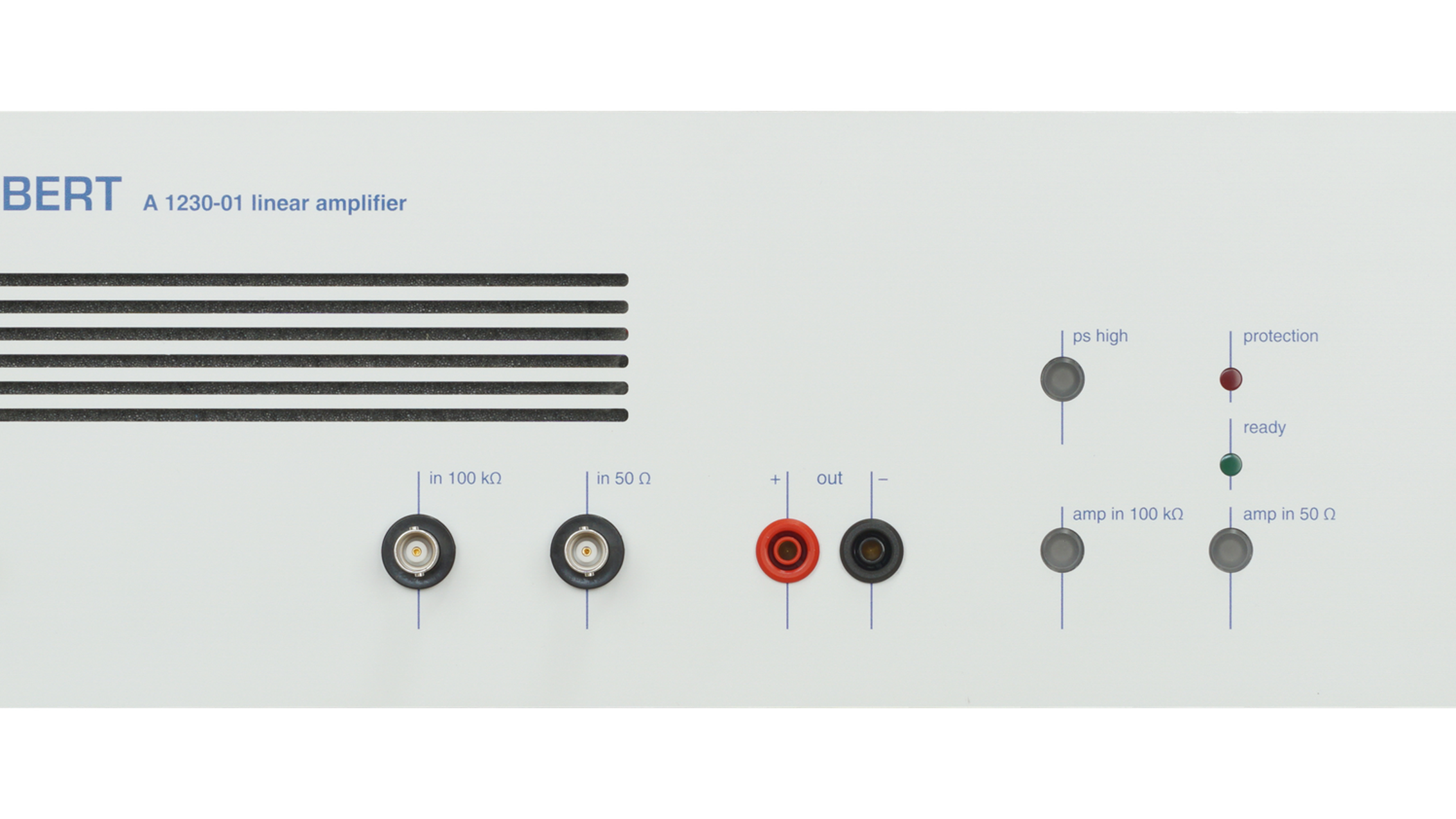

Product Images#
